K048 MAR

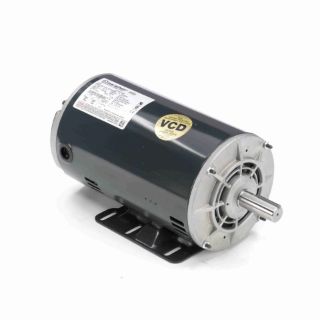

Picture of K048 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
K048
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

056T34D5340

Features

EISA compliant efficiencies, as noted Ball bearings NEMA Service Factors Motor will accept a C-face kit 56H, 143T, and 145T combination base with 12 mounting holes NEMA design B

Specifications

Assembly/Box Mounting:F1 Only
C Dim (IN):11.44
CE:Y
Connection Drawing Number:A-EE7308
Country of Origin:United States of America
CSA:Y
Current:8.4-8.2/4.1
DE Bearing Size:6205
DE Bearing Type:Ball
Duty:Continuous
Efficiency:84
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):7.56
Frame Material:Rolled Steel
Frame Size:56
Frame Suffix:H
Frame Type:56H
Frequency:60
Harmonized Tariff Code:8501.52.4000
HP:3
Insulation Class:B
IP Code:22
KVA Code:J
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:2
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-100094-756
Phases:3
Power Factor:84.5
Power Rating (HP):3
Power Rating (kW):2.2
Rotation:Reversible
Service Factor:1.15
Shaft Diameter (IN):0.625
Shaft Extension:1.88
Shaft Type:NEMA 56
Speed:3450
Speed Max:3450
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:208-230/460

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
3 HP
Speed Rating
3450 RPM
Type
Squirrel Cage Induction Run
Voltage Rating
208-230/460 V
