K067 MAR

Name: K067 MAR
Brand: Marathon Electric Motors
SKU: K067 MAR
Availability: OutOfStock

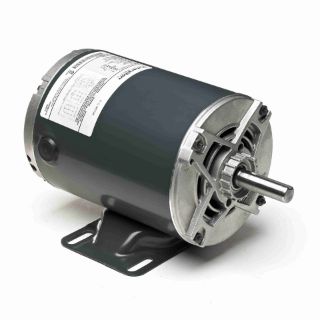

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

K067

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056T17D3305

Features

Motor will accept a C-face kit Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower F1 mounting only, cannot reassemble to F2 Voltage change device feature for quick voltage changes 56HZ with 7/8" shaft diameter, 3-1/2" shaft height, and slotted 56 frame base

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	10.99
CE:	Y
Connection Drawing Number:	A-102007-1
Country of Origin:	United States of America
CSA:	Y
Current:	3.4-3.6/1.8
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	77
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	7.6
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	HZ
Frame Type:	56HZ
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	1
Insulation Class:	B
IP Code:	22
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-104417-706
Phases:	3
Power Factor:	68.5
Power Rating (HP):	1
Power Rating (kW):	0.75
Resistance Main:	17.9
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	2.28
Shaft Type:	NEMA 145T
Speed:	1725
Speed Max:	1725
Starting Type:	Across The Line
Type of Overload Protector:	Automatic
UL:	Recognized
Voltage:	208-230/460
