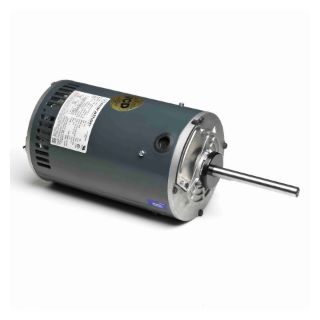

K1488 MAR

Name: K1488 MAR
Brand: Marathon Electric Motors
SKU: K1488 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

5K49ZN6138S

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous-Duty

Description

Marathon® AC Motor, 6-Pole Continuous-Duty, 2 hp, 208 to 230/460 VAC, 7.4 to 7.4/3.7 A, 60 Hz Frequency, 3 ph ph, 1140 rpm Speed, 1 Speed, Open Drip-Proof Enclosure, 56Z Frame, 0.63 in Dia x 6 in L Shaft, CW/CCW Rotation, 1 Service Factor, Ball Bearing, Round Mounting, 65 deg C, Insulation Class: Class F, Rolled Steel, 6.42 in Dia x 17.97 in L Dimensions

Standards

CSA Certified | UL Listed

Features

Double sealed ball bearings
Automatic thermal protection
Internal and external water slingers
Drip-proof enclosure when mounted vertically
Reversible shaft rotation
Enclosed shaft end bracket with vented frame
Threaded lead exit
4 locating screws 90 deg apart, 3.33 in from outer edge of shaft slinger
Hubs on both ends will accept resilient base kits
Patented VCD™, voltage change device where footnoted "VC"
Vertical shaft motor orientation

Specifications

Amperage Rating:	7.4 to 7.4/3.7 A
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	6.42 in Dia x 17.97 in L
Enclosure Type:	Open Drip-Proof
Frame:	56Z
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round
Number of Speeds:	1
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1
Shaft Size:	0.63 in Dia x 6 in L
Speed:	1140 rpm
Temperature Rating:	65 deg C
Voltage Rating:	208 to 230/460 VAC
