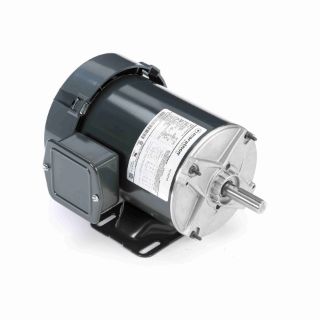

Actual Product May Vary From Image

K161 MAR

Name: K161 MAR
Brand: Marathon Electric Motors
SKU: K161 MAR
Price: 455.26 USD
Availability: InStock

3/4 HP General Purpose Motor, 3 phase, 1800 RPM, 208-230/460 V, 56 Frame, TEFC

Manufacturer part number: K161

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$455.26

Qty:

Product Details

5K36PNB111

Motor will accept a C-face kit Suitable for use on a VFD Class F insulation Ball bearings Design B

C Dim (IN):	11.36
CE:	N
Connection Drawing Number:	113A930FIG2
Country of Origin:	Mexico
CSA:	Y
Current:	2.8-2.8
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	77
Electrical Type:	Three Phase
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	6.22
Frame Material:	Rolled Steel
Frame Size:	56
Frame Type:	56
Frequency:	60
Harmonized Tariff Code:	8501.51.4040
HP:	3/4
Insulation Class:	B
KVA Code:	K
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	52A111202P1
Phases:	3
Power Factor:	0
Power Rating (HP):	0.75
Power Rating (kW):	0.56
Rotation:	Counterclockwise/Clockwise
Service Factor:	1.25
Shaft Diameter (IN):	0.63
Shaft Extension:	1.88
Speed:	1725
Speed Max:	1725
Thru-bolts Extension:	0
Type of Overload Protector:	NONE
UL:	Recognized
Voltage:	208-230/460
