KB20-PP-AS INA

Name: KB20-PP-AS INA
Brand: INA
SKU: KB20-PP-AS INA
Price: 107.43 USD
Availability: OutOfStock

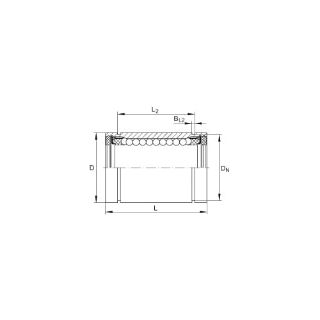

INA KB20-PP-AS KB..-PP-AS Linear Ball Bushing Bearing, Closed Closure, 20 mm Dia Shaft, 32 mm OD, 45 mm L

Manufacturer: INA

Manufacturer part number: KB20-PP-AS

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$107.43

Qty:

Product Details

Brand Name

INA

Description

INA linear ball bearings of series KB consist of a hardened and ground outer ring and a cage in which the balls are guided. The balls in the return zones are held in place by spring elements. This ensures that even heavily loaded or preloaded bearings have a uniform, low resistance to displacement.

INA Linear Ball Bushing Bearing, Series: KB..-PP-AS, 20 mm Shaft Dia, 32 mm Outside Dia, 32 mm Height, 45 mm Length, 32 mm W, Closed Closure, 1570 to 1660/1230 to 1570 N, Alloy Steel Bearing, Buna-N Seal, Linear Lube Lubrication, -30 to 80 deg C

Features

The special recirculation design provides a uniform, low resistance to displacement with extremely smooth running even in highly loaded and preloaded linear ball bearings

Specifications

Bearing Material:	Alloy Steel
Closure Type:	Closed
Height:	32 mm
Length:	45 mm
Load Capacity:	1570 to 1660/1230 to 1570 N
Lubrication Type:	Linear Lube
Outside Diameter:	32 mm
Seal Material:	Buna-N
Series:	KB..-PP-AS
Shaft Diameter:	20 mm
Temperature Rating:	-30 to 80 deg C
Width:	32 mm
