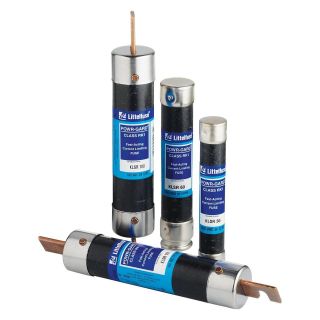

Actual Product May Vary From Image

KLNR010 LIT

Name: KLNR010 LIT
Brand: Littelfuse
SKU: KLNR010 LIT
Price: 31.26 USD
Availability: OutOfStock

Littelfuse® POWR-GARD® KLNR010 Current Limiting High Speed North American Style Fast Acting Fuse, 10 A, 250 VAC/125 VDC, 200/20 kA Interrupt, RK1 Class, Cartridge Body

Manufacturer: Littelfuse

Manufacturer part number: KLNR010

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$31.26

Qty:

Product Details

Brand Name

Littelfuse®

Type

Current Limiting High Speed North American Style

Description

KLNR series RK1 fuses were the earliest type of current limiting fuse developed. Their single element, silver link design enables them to provide fast acting overload and short circuit protection. When used to protect inductive loads such as motors, solenoids and transformers, KLNR series fuses must be greatly oversized to prevent opening the fuses on harmless inrush currents. In such applications, KLNR series fuses may only provide short circuit protection.

Littelfuse® POWR-GARD® Fast Acting Fuse, Current Limiting High Speed North American Style, Series: KLNR, Non-Indicating, Rejection, 10 A, 250 VAC/125 VDC, 200/20 kA Interrupt, Class: RK1, Ferrule Terminal, Holder Mounting, Cartridge Body, Single Element, Composite, 9/16 in Dia x 2 in L Body

Application

Resistance Heaters, Lighting Circuits and Non-Inductive Load Applications

Standards

UL 248-12 File No. E81895 | CSA File No. LR29862 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Extremely current limiting - stops damaging short circuit current faster than any mechanical protective device
Fast-acting - provides fast-acting protection to equipment such as variable speed drives, rectifiers and other equipment containing surge-sensitive components
Reliable interruption of all over currents upto 200000 A
Longer equipment life - current limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents
Often permits use of readily available, less costly equipment
200 kA at 250 VAC, 20 kA at 125 VDC interrupting rating

Specifications

Amperage Rating:	10 A
Body Size:	9/16 in Dia x 2 in L
Body Type:	Cartridge
Class:	RK1
Country of Origin:	MX
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200/20 kA
Material:	Composite
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Series:	KLNR
Terminal Type:	Ferrule
Voltage Rating:	250 VAC/125 VDC

Customers who bought this item also bought

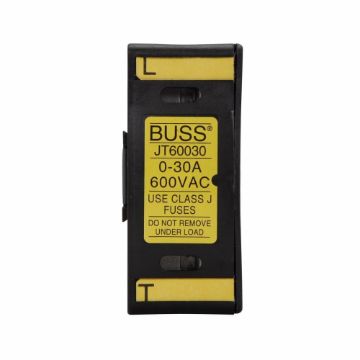

JT60030 BSF
