KPCL7075MTR APN

Name: KPCL7075MTR APN
Brand: Appleton
SKU: KPCL7075MTR APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

KPCL7075MTR

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Enclosed Gasketed

Description

The Mercmaster™ III Series provides a wide selection of high quality enclosed and gasketed Luminaires for use in demanding industrial environments and hazardous locations.

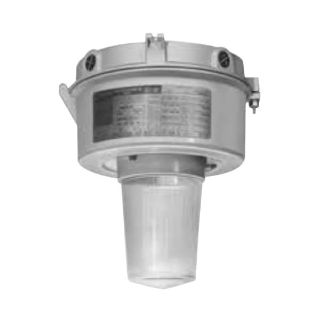

Appleton® Mercmaster™ III 250 HID Luminaire, Enclosed Gasketed, Series: KP Series, 120 to 277 VAC, 94 W Fixture, 0.9/0.5/0.44/0.35 A Starting, 0.82/0.48/0.41/0.36 A Operating, High Pressure Sodium Lamp, 70 W Lamp, Mogul Lamp Base, HX-HPF Ballast, Prismatic Glass Lens, 6400 Lumens, NEMA 4X/IP66, Ceiling Mount, Cast Copper-Free Aluminum Housing, Epoxy Powder Coated Housing, 13.62 in W

Application

For marine and wet locations, areas where flammable gases and vapors or combustible dusts are present under conditions defined by the national electrical code, non-hazardous locations where severe weather conditions, excessive moisture, dirt, dust or corrosive atmospheres are encountered, pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants, storage areas and marine applications

Standards

cULus File No. E10444 | UL ANSI/UL 844/1598/60079-0/60079-15 | CSA 025428 | CSA C22.2 File No. 9/137 | CAN/CSA E60079-0/E60079-15 | NEC/CEC Class I, Div 2, Groups A, B, C, D, Class I, Zone 2, AEx nA nR IIC (Z2), Class I, Zone 2, Ex nR IIC (Z) CSA Certified | Class I, Zone 2, AEx nR IIC (ZB), Class II, Div 1 and 2, Groups E, F, G, Class III | NEC/CEC, Class I, Div 2/Class II, Div 1

Features

Modular design allows scores of fixture component combinations to meet installation and lighting needs
Many most used combinations are offered prewired and assembled, complete with lamp, packaged in a single carton and ready to install
For high corrosion resistance, fixture housing, mounting hoods and guards are copper free cast aluminum with baked epoxy finish, electrostatically applied for uniformity, all exposed hardware is stainless steel
Hinge has high lip for added safety during installation and servicing
Hinge and bolt construction assures 360 deg compression at all points on ballast housing gasket for positive sealing
Swing away design of captive bolt and nut simplifies servicing
Body gaskets and globe gaskets are high temperature silicone rubber
Capacitors are non-PCB type, thermally isolated from ballast
Mogul base porcelain socket with nickel plated contacts has 200 deg C (392 deg F), welded leads, prewired to the ballast
0.9 A at 120 VAC, 0.5 A at 208 VAC, 0.44 A at 240 VAC, 0.35 A at 277 VAC starting, 0.82 A at 120 VAC, 0.48 A at 208 VAC, 0.41 A at 240 VAC, 0.36 A at 277 VAC operating

Specifications

Amperage Rating:	0.9/0.5/0.44/0.35 A Starting, 0.82/0.48/0.41/0.36 A Operating
Ballast Type:	HX-HPF
Country of Origin:	MX
Dimensions:	13.62 in W
Enclosure Type:	NEMA 4X/IP66
Fixture Wattage:	94 W
Housing Finish:	Epoxy Powder Coated
Housing Material:	Cast Copper-Free Aluminum
Lamp Base Type:	Mogul
Lamp Type:	High Pressure Sodium
Lamp Wattage:	70 W
Lens Type:	Prismatic Glass
Lumens:	6400 Lumens
Mounting Type:	Ceiling
Series:	KP Series
Voltage Rating:	120 to 277 VAC
