KPSTP35150J2G48 APN

Name: KPSTP35150J2G48 APN
Brand: Appleton
SKU: KPSTP35150J2G48 APN
Availability: OutOfStock

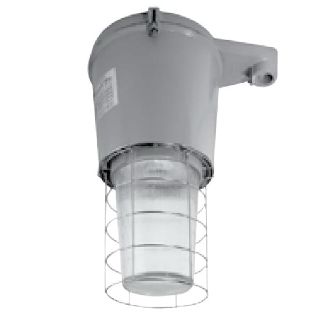

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

KPSTP35150J2G48

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Enclosed Gasketed

Description

The Mercmaster™ III series provides a wide selection of high quality enclosed and gasketed Luminaires for use in demanding industrial environments and hazardous locations. The 400 series is ideal for industrial environments and wet locations where a medium to high mounting height is required.

Appleton® Mercmaster™ III 400 HID Luminaire, Enclosed Gasketed, Series: KP Series, 480 VAC, 400 W Fixture, 0.75 A Starting, 0.9 A Operating, Pulse Start Metal Halide Lamp, 350 W Lamp, Mogul Lamp Base, Super Constant Wattage Autotransformer (SCWA) Ballast, Prismatic Glass Lens, 37000 Lumens, NEMA 4X/IP66 Enclosure, Stanchion Mounting, Cast Copper-Free Aluminum Housing Material, Epoxy Powder Coated Housing Finish, 12 in H x 17.23 in W Dimensions

Application

For marine and wet locations, areas where flammable gases and vapors or combustible dusts are present under conditions defined by the national electrical code , non-hazardous locations where severe weather conditions, excessive moisture, dirt, dust or corrosive atmospheres are encountered, pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, manufacturing plants, storage areas, waste and sewage treatment

Standards

NEC/CEC Class I, Div 2, Groups A, B, C, D, Class I, Zone 2, AEx nA nR IIC (Z2), Class I, Zone 2, Ex nR IIC (Z) | CSA Certified | Class I, Zone 2, AEx nR IIC (ZB), Class II, Div 1 and 2, Groups E, F, G, Class III, Simultaneous Exposure (Class I, Div 2/Class II, Div 1) | UL Listed: E10444, 1598/1598A/844 | 60079-0, 60079-15 | cULus E10444 | UL ANSI/UL 844, 1598, 60079-0, 60079-15 | CSA 025428 | CSA C22.2 File No. 9/C22.2 File No. 137 | CAN/CSA E60079-0, E60079-15

Features

Superior corrosion resistance
Hinge has high lip for added safety during installation and servicing
Hinge and bolt construction ensures 360 deg compression at all points on ballast housing gasket for positive sealing
Swing away design of captive bolt and nut simplifies servicing
Wide choice of photometric distributions
Mogul base porcelain socket with nickel plated contacts has 200 deg C (392 deg F), welded leads, prewired to the ballast to ensure trouble free operation in high ambient temperatures
Ground wire provided to bond hood and ballast housing for electrical protection
One piece ballast housing for each component provides even heat dissipation for cooler operation and longer ballast life
All Mercmaster™ III mounting hoods have provision for easy field installation of fuses in fixtures

Specifications

Amperage Rating:	0.75 A Starting, 0.9 A Operating
Ballast Type:	Super Constant Wattage Autotransformer (SCWA)
Country of Origin:	MX
Dimensions:	12 in H x 17.23 in W
Enclosure Type:	NEMA 4X/IP66
Fixture Wattage:	400 W
Housing Finish:	Epoxy Powder Coated
Housing Material:	Cast Copper-Free Aluminum
Lamp Base Type:	Mogul
Lamp Type:	Pulse Start Metal Halide
Lamp Wattage:	350 W
Lens Type:	Prismatic Glass
Lumens:	37000 Lumens
Mounting Type:	Stanchion
Series:	KP Series
Voltage Rating:	480 VAC
