KPWBH1075GMT APN

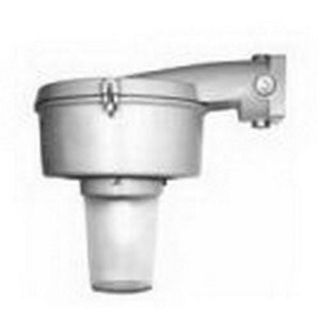

Picture of KPWBH1075GMT APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
KPWBH1075GMT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Description

The Mercmaster III series provides a wide selection of high quality enclosed and gasketed luminaires for use in demanding industrial environments and hazardous locations.
Appleton® Mercmaster III 250 HID Luminaire, Series: KP Series, 120/208/240/277 VAC, 130 W Fixture, 1.2/0.7/0.61/0.55 A Starting, 1.15/0.7/0.58/0.5 A Operating, Pulse Start Metal Halide Lamp, 100 W Lamp, Mogul Lamp Base, HX-HPF Ballast, Prismatic Glass Lens, 8500 Lumens, NEMA 4X/IP66 Enclosure, Wall Mounting, Aluminum Housing Material, Epoxy Powder Coated Housing Finish, 16.96 in L x 11 in W Dimensions

Application

Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Manufacturing Plants, Storage Areas and Marine Applications

Standards

cULus E10444 | UL ANSI/UL 844, 1598, 60079-0, 60079-15 | CSA 025428 | CSA C22.2 File No. 9, C22.2 File No. 137 | CAN/CSA E60079-0, E60079-15 | NEC/CEC Class I, Div 2, Groups A, B, C, D | Class I, Zone 2, AEx nA nR IIC (Z2) | Class I, Zone 2, AEx nR IIC (ZB) | Class II, Div 1 and 2, Groups E, F, G | Class III | NEC/CEC | Class I, Div 2/Class II, Div 1

Features

  • Modular design allows scores of fixture component combinations to meet installation and lighting needs and many most-used combinations are offered prewired and assembled, complete with lamp, packaged in a single carton and ready to install
  • Choice of heat-resistant prismatic glass refractors (NEMA distributions I, III and V), or heat-resistant prismatic glass globes for hazardous area fixtures
  • Colored and clear polycarbonate globes and Tuff-skin® coated glass globes are available but are NOT approved for use in classified areas
  • Fixtures with these globes do NOT comply with code requirements, and should be used in non-classified areas only
  • Globes and refractors thread directly into ballast housing
  • Mounting hoods include cone-shaped pendant hood, standard pendant, flexible pendant, ceiling and wall pendants (tapped for 3/4 in or 1 in NPT), 25 deg angle stanchion, and 90 deg (straight) stanchion (both tapped for 1-1/4 in or 1-1/2 in NPT)
  • Cone hood fixtures for pendant mounting shed dust, dirt and combustible fibers, cone hood inhibits build-up that "insulates" fixture and slows heat transfer, and provides increased surface area for more effective heat dissipation
  • Reflector choice includes standard dome and 30 deg angle types, both made of fiberglass reinforced white polyester, highly resistant to unusually corrosive applications
  • Reflectors are vented for cooler, dirt-free operation and maintained lumen output, they secure to ballast housing with stainless steel screws threading into stainless steel inserts
  • For high corrosion resistance, fixture housing, mounting hoods and guards are copperfree cast aluminum with baked epoxy finish, electrostatically applied for uniformity, all exposed hardware is stainless steel
  • Hinge has high lip for added safety during installation and servicing
  • Body gaskets and globe gaskets are high temperature silicone rubber, capacitors are non-PCB type, thermally isolated from ballast
  • Mogul base porcelain socket with nickel plated contacts has 200 deg C (392 deg F) welded leads, prewired to the ballast, assures trouble-free operation in installations where high ambient temperatures are encountered
  • HPS ballasts are high power factor (min PF 90%)
  • For electrical protection, a ground wire is provided on each Mercmaster to bond hood and ballast housing
  • Copperfree cast aluminum (less than 4/10 of 1%) mounting hoods, ballast bodies and guards
  • Stainless steel, latch assemblies have stainless steel bolt and captive nut, reflectors and guards attach with stainless steel screws threading into stainless steel inserts exposed hardware, white polyester reflector
  • 5 hubs, four close up plugs
  • 3/4 in NPT hub
  • 60 Hz frequency

Specifications

Amperage Rating:1.2/0.7/0.61/0.55 A Starting, 1.15/0.7/0.58/0.5 A Operating
Ballast Type:HX-HPF
Country of Origin:MX
Dimensions:16.96 in L x 11 in W
Enclosure Type:NEMA 4X/IP66
Fixture Wattage:130 W
Housing Finish:Epoxy Powder Coated
Housing Material:Aluminum
Lamp Base Type:Mogul
Lamp Type:Pulse Start Metal Halide
Lamp Wattage:100 W
Lens Type:Prismatic Glass
Lumens:8500 Lumens
Mounting Type:Wall
Series:KP Series
Voltage Rating:120/208/240/277 VAC
