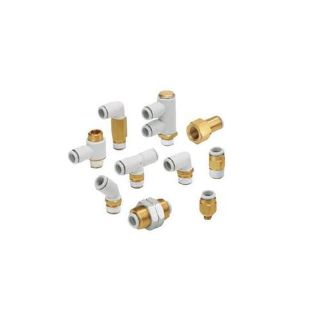

Actual Product May Vary From Image

KQ2F06-M5A SMC

Name: KQ2F06-M5A SMC
Brand: SMC
SKU: KQ2F06-M5A SMC
Price: 2.83 USD
Availability: InStock

SMC® KQ2F06-M5A KQ2 Metric Size Connector One Touch Fitting, 6 mm x M5 x 0.8 Nominal, Push-In End Style, Brass

Manufacturer: SMC

Manufacturer part number: KQ2F06-M5A

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	2	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.83

Qty:

Product Details

Brand Name

SMC®

Type

Metric Size Connector

Description

SMC®, KQ2F06-M5A, One Touch Fitting, Metric Size Connector, Series: KQ2, Fitting/Connector: Female, 6 mm x M5 x 0.8 Nominal, Push-In End Style, 10 mm Hex, 17.6 x 5.7 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, Gray/White

Application

For use in potable water systems

Standards

RoHS Compliant

Features

Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
Operating pressure range, -100kPa to 1MPa
Release collar allows easy removal of tubing without causing damage to the tube
This product is not intended for use in potable water systems

Specifications

Color:	Gray/White
Country of Origin:	JP
End Style:	Push-In
Fitting/Connector Type:	Female
Hex Size:	10 mm
Length:	17.6 x 5.7 mm
Material:	Brass
Nominal Size:	6 mm x M5 x 0.8
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C Air, 0 to 40 deg C Water Operating
