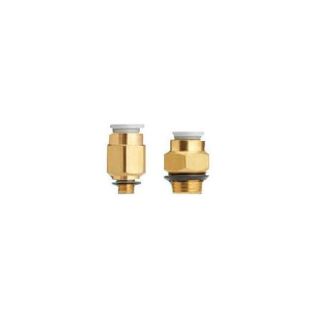

Actual Product May Vary From Image

KQ2H04-U01N SMC

Name: KQ2H04-U01N SMC
Brand: SMC
SKU: KQ2H04-U01N SMC
Price: 2.29 USD
Availability: OutOfStock

SMC® KQ2H04-U01N KQ2 Inch Size with Gasket Male Connector, 4 mm x Uni-1/8 Nominal, Push-In x MNPT End Style, Brass

Manufacturer: SMC

Manufacturer part number: KQ2H04-U01N

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.29

Qty:

Product Details

Brand Name

SMC®

Type

Inch Size with Gasket

Description

SMC®, KQ2H04-U01N, Male Connector, Inch Size with Gasket, Series: KQ2, Fitting/Connector: Connector, 4 mm x Uni-1/8 Nominal, Push-In x MNPT End Style, 10 mm Hex, 15.9 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, Electroless Nickel Plated, White

Application

For use in potable water systems

Standards

RoHS Compliant

Features

Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
Operating pressure range, -100kPa to 1MPa
Release collar allows easy removal of tubing without causing damage to the tube
This product is not intended for use in potable water systems

Specifications

Color:	White
Country of Origin:	JP
End Style:	Push-In x MNPT
Finish:	Electroless Nickel Plated
Fitting/Connector Type:	Connector
Hex Size:	10 mm
Length:	15.9 mm
Material:	Brass
Nominal Size:	4 mm x Uni-1/8
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C Air, 0 to 40 deg C Water Operating
