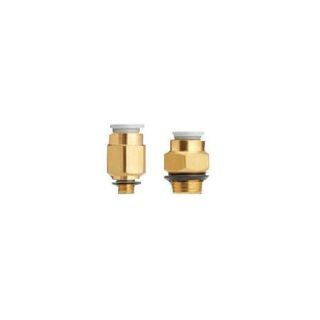

Picture of KQ2L06-U02N SMC
Actual Product May Vary From Image

KQ2L06-U02N SMC

SMC® KQ2L06-U02N KQ2 Gasket Seal One-Touch Fittings, 6 mm x Uni 1/4 Nominal, Push-In End Style, Resin
Manufacturer: SMC
Manufacturer part number: KQ2L06-U02N
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
5 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$3.65

Product Details

Brand Name

SMC®

Type

Gasket Seal

Description

SMC®, KQ2L06-U02N, One-Touch Fittings, Gasket Seal, Series: KQ2, Fitting/Connector: Elbow, 6 mm x Uni 1/4 Nominal, Push-In End Style, -100 kPa to 1 MPa Pressure, -5 to 60 deg C, Resin, White/Light Gray

Application

For use in potable water systems

Standards

RoHS Compliant

Features

  • Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
  • Operating pressure range, -100kPa to 1MPa
  • Release collar allows easy removal of tubing without causing damage to the tube
  • This product is not intended for use in potable water systems

Specifications

Color:White/Light Gray
Country of Origin:JP
End Style:Push-In
Fitting/Connector Type:Elbow
Material:Resin
Nominal Size:6 mm x Uni 1/4
Pressure Rating:-100 kPa to 1 MPa
Series:KQ2
Temperature Rating:-5 to 60 deg C
