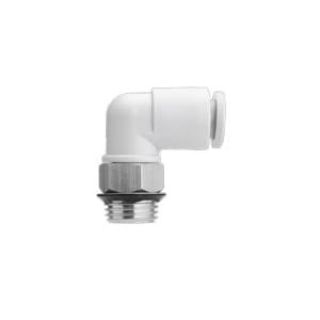

Actual Product May Vary From Image

KQ2L08-U01A SMC

Name: KQ2L08-U01A SMC
Brand: SMC
SKU: KQ2L08-U01A SMC
Price: 4.17 USD
Availability: InStock

SMC® KQ2L08-U01A Tube Elbow, 8 mm x Uni1/8 Nominal, Male Threaded x Push-In, Brass

Manufacturer: SMC

Manufacturer part number: KQ2L08-U01A

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
12	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4.17

Qty:

Product Details

Brand Name

SMC®

Description

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. the use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa. the KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

SMC® Tube Elbow, Series: KQ2, Fitting/Connector Type: Elbow, 8 mm x Uni1/8 Nominal, Male Threaded x Push-In, 10 mm Hex, -100 kPa to 1 MPa, -5 to 60 deg C, Brass

Features

Accepts FEP, PFA, nylon, soft nylon and polyurethane tubes
Air and water fluid
Release collar allows easy removal of tubing without causing damage to the tube
This is not intended for use in potable water systems

Specifications

End Style:	Male Threaded x Push-In
Fitting/Connector Type:	Elbow
Hex Size:	10 mm
Material:	Brass
Nominal Size:	8 mm x Uni1/8
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C
