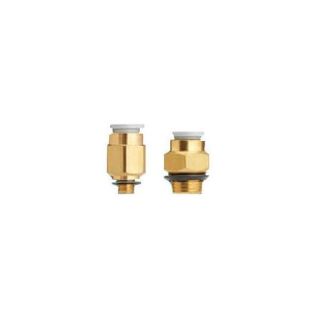

Actual Product May Vary From Image

KQ2L08-U03A SMC

Name: KQ2L08-U03A SMC
Brand: SMC
SKU: KQ2L08-U03A SMC
Price: 4.85 USD
Availability: InStock

SMC® KQ2L08-U03A KQ2 Gasket Seal One-Touch Fittings, 8 mm x Uni 3/8 Nominal, Push-In End Style, Resin

Manufacturer: SMC

Manufacturer part number: KQ2L08-U03A

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
5	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4.85

Qty:

Product Details

Brand Name

SMC®

Type

Gasket Seal

Description

SMC®, KQ2L08-U03A, One-Touch Fittings, Gasket Seal, Series: KQ2, Fitting/Connector: Elbow, 8 mm x Uni 3/8 Nominal, Push-In End Style, 17 mm Hex, -100 kPa to 1 MPa Pressure, -5 to 60 deg C, Resin, White/Light Gray, 30 mm L Dimensions

Application

For use in potable water systems

Standards

RoHS Compliant

Features

Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
Operating pressure range, -100kPa to 1MPa
Release collar allows easy removal of tubing without causing damage to the tube
This product is not intended for use in potable water systems

Specifications

Color:	White/Light Gray
Country of Origin:	JP
Dimensions:	30 mm L
End Style:	Push-In
Fitting/Connector Type:	Elbow
Hex Size:	17 mm
Material:	Resin
Nominal Size:	8 mm x Uni 3/8
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C
