Actual Product May Vary From Image

KQ2L16-U04A SMC

Name: KQ2L16-U04A SMC
Brand: SMC
SKU: KQ2L16-U04A SMC
Price: 10.72 USD
Availability: InStock

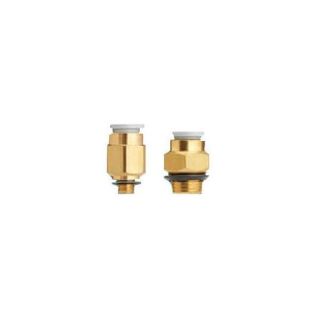

SMC® KQ2L16-U04A KQ2 Male One Touch Fitting, 16 mm x Uni 1/2 Nominal, Female Push-In x 1/2 Male UNI Threaded End Style, Brass

Manufacturer: SMC

Manufacturer part number: KQ2L16-U04A

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
15	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$10.72

Qty:

Product Details

Brand Name

SMC®

Type

Male

Description

SMC®, KQ2L16-U04A, One Touch Fitting, Male, Series: KQ2, Fitting/Connector: 90 deg Elbow, 16 mm x Uni 1/2 Nominal, Female Push-In x 1/2 Male UNI Threaded End Style, 22 mm Hex, 40.5 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C, Brass, Gray/White

Application

For use in potable water systems

Standards

RoHS Compliant

Features

Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
Operating pressure range, -100kPa to 1MPa
Release collar allows easy removal of tubing without causing damage to the tube
This product is not intended for use in potable water systems

Specifications

Color:	Gray/White
Country of Origin:	JP
End Style:	Female Push-In x 1/2 Male UNI Threaded
Fitting/Connector Type:	90 deg Elbow
Hex Size:	22 mm
Length:	40.5 mm
Material:	Brass
Nominal Size:	16 mm x Uni 1/2
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C
