KQ2R04-06A SMC

Name: KQ2R04-06A SMC
Brand: SMC
SKU: KQ2R04-06A SMC
Price: 1.84 USD
Availability: InStock

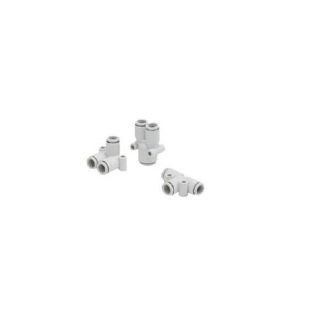

SMC® KQ2R04-06A KQ2 Reducer Push-to-Connect Tube Fittings, 4 x 6 mm Nominal, Push-In x Stem End Style, -100 KPa to 1 MPa Pressure, Resin

Manufacturer: SMC

Manufacturer part number: KQ2R04-06A

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
27	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.84

Qty:

Product Details

Brand Name

SMC®

Type

Reducer

Description

SMC®, KQ2R04-06A, Push-to-Connect Tube Fittings, Reducer, Series: KQ2, 4 x 6 mm Nominal, Push-In x Stem End Style, 28.6 mm Length, -100 KPa to 1 MPa Pressure, -5 to 60 deg C, Resin, White/Light Gray

Application

For use in potable water systems

Standards

RoHS Compliant

Features

Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
Operating pressure range, -100kPa to 1MPa
Release collar allows easy removal of tubing without causing damage to the tube
This product is not intended for use in potable water systems

Specifications

Color:	White/Light Gray
Country of Origin:	JP
End Style:	Push-In x Stem
Length:	28.6 mm
Material:	Resin
Nominal Size:	4 x 6 mm
Pressure Rating:	-100 KPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C
