KQ2T08-00A SMC

Name: KQ2T08-00A SMC
Brand: SMC
SKU: KQ2T08-00A SMC
Price: 4.64 USD
Availability: InStock

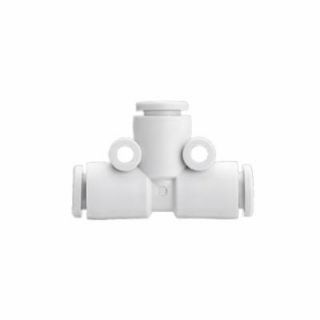

SMC® KQ2T08-00A Union Tee, 8 mm, Tube, PBT

Manufacturer: SMC

Manufacturer part number: KQ2T08-00A

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
24	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4.64

Qty:

Product Details

Brand Name

SMC®

Alternate Supplier #

Grainger - 36W774

Description

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. the use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa. the KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

SMC® Union Tee, Series: KQ2, Fitting/Connector Type: Union, 8 mm Nominal, Tube, 36.4 mm Length, 145 psi, 23 to 140 deg F, PBT, Gray/White, 24.8 mm H

Standards

RoHS Compliant

Features

Accepts FEP, PFA, nylon, soft nylon and polyurethane tubes
Operating fluid - air and water
Release collar allows easy removal of tubing without causing damage to the tube
Not intended for use in potable water systems
18.2 mm outside Dia

Specifications

Color:	Gray/White
Country of Origin:	JP
Dimensions:	24.8 mm H
End Style:	Tube
Fitting/Connector Type:	Union
Length:	36.4 mm
Material:	PBT
Nominal Size:	8 mm
Pressure Rating:	145 psi
Series:	KQ2
Temperature Rating:	23 to 140 deg F
