Actual Product May Vary From Image

KQ2U11-00A SMC

Name: KQ2U11-00A SMC
Brand: SMC
SKU: KQ2U11-00A SMC
Price: 10.04 USD
Availability: InStock

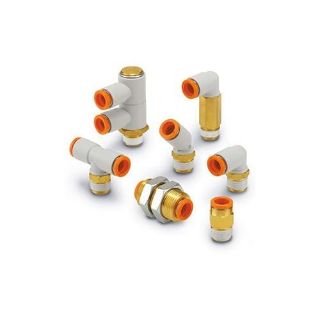

SMC® KQ2U11-00A KQ2 Union One-Touch Fittings, 3/8 in Nominal, Push-In End Style, Brass

Manufacturer: SMC

Manufacturer part number: KQ2U11-00A

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	13
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$10.04

Qty:

Product Details

Brand Name

SMC®

Type

Union

Description

SMC®, KQ2U11-00A, One-Touch Fittings, Union, Series: KQ2, Fitting/Connector: Connector, 3/8 in Nominal, Push-In End Style, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, White/Light Gray

Application

Used for a wide range of pressures from a low vacuum up to a pressure

Standards

RoHS Compliant

Features

Accepts nylon and polyurethane tubes
Stud allows rotation of the body for ease of installation in confined spaces
Release collar allows easy removal of tubing without damaging the tube
Can be used for a wide range of pressures from a low vacuum up to a pressure of 1.0MPa
This product is not intended for use in potable water systems

Specifications

Color:	White/Light Gray
Country of Origin:	JP
End Style:	Push-In
Fitting/Connector Type:	Connector
Material:	Brass
Nominal Size:	3/8 in
Pressure Rating:	-100 kPa to 1 MPa
Series:	KQ2
Temperature Rating:	-5 to 60 deg C Air, 0 to 40 deg C Water Operating
