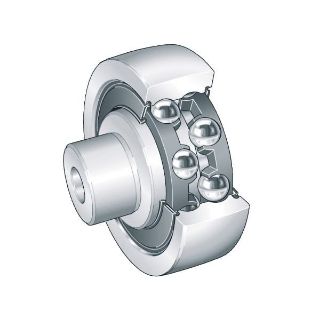

KR5202-2RS INA

Stud type track rollers have outer rings with a crowned outside surface, heavy-section roller studs and ball and cage assemblies with plastic cages. The yoke type track rollers are available with and without an eccentric collar. Stud type track rollers ZL and KR must be axially clamped. The abutment surface for the nut must have sufficiently high strength and the tightening torque MA for the fixing nut must be observed. The roller stud can only transmit the permissible radial load if the correct tightening torque is applied. If the tightening torque for the nut cannot be adhered to, an interference fit is required.

INA Track Roller, Crowned Stud Type, Series: KR52, 40 mm Roller Diameter, 15.9 mm Roller Width, 16 mm Stud Diameter, 36.5 mm Stud Length, M16 x 1.5 Thread, 19 mm Thread Length, 10000 N Dynamic/6300 N Static Load, 7000 rpm Maximum, Standard Stud, Double Seal Closure, Hex Head, Uncoated
