Actual Product May Vary From Image

KRV19-SK-PP-A INA

Name: KRV19-SK-PP-A INA
Brand: INA
SKU: KRV19-SK-PP-A INA
Price: 79.46 USD
Availability: InStock

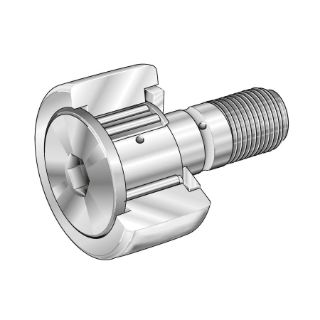

INA KRV19-SK-PP-A KRV-PP Crowned Stud Type Track Roller With Axial Guidance, 19 mm Dia x 11 mm W Roller, 8 mm Dia x 20 mm L Stud

Manufacturer: INA

Manufacturer part number: KRV19-SK-PP-A

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	20	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$79.46

Qty:

Product Details

Brand Name

INA

Type

Crowned Stud Type

Description

Stud type track rollers are similar in their construction to single and double row yoke type track rollers with axial guidance, except that the raceway is formed by a heavy-section roller stud with a fixing thread and type-dependent mounting aid, and with a type-dependent relubrication facility. Due to the thick-walled outer ring with profiled outside surface and the rolling element set, they can support high radial loads as well as axial loads arising from slight misalignment and skewed running.

INA Track Roller, Crowned Stud Type, Series: KRV-PP, 19 mm Roller Diameter, 11 mm Roller Width, 8 mm Stud Diameter, 20 mm Stud Length, M8 x 1.25 Thread, 10 mm Thread Length, 5400 N Dynamic/8000 N Static Load, 3100 rpm Maximum, -30 to 100 deg C, Double Seal Closure, Hex Head, Uncoated

Application

Cam Gears, Bed Ways, Conveying Equipment and Linear Guidance Systems

Features

The series KRV-PP have an outside surface with the optimized INA profile
KRV-PP is provided by plastic axial plain washers, the contact flange and contact washer
The design KRV-PP has a full complement needle roller set
Plastic axial plain washer with formed seal lip on both sides of the bearing, giving a three stage seal
Hexagonal socket only on the flange side end face

Specifications

Closure Type:	Double Seal
Country of Origin:	DE
Finish:	Uncoated
Head Type:	Hex
Load Capacity:	5400 N Dynamic/8000 N Static
Maximum Speed:	3100 rpm
Roller Diameter:	19 mm
Roller Width:	11 mm
Series:	KRV-PP
Stud Diameter:	8 mm
Stud Length:	20 mm
Temperature Rating:	-30 to 100 deg C
Thread Length:	10 mm
Thread Size:	M8 x 1.25
