KS25-M5:10-PF RUL

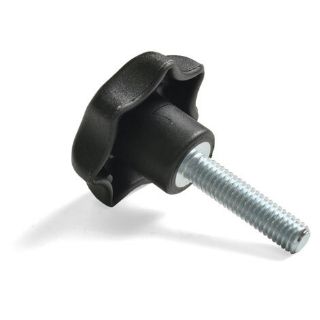

Ruland Star Knob KS25-M5:10-PF, 25 mm Knob Diameter, M5 Thread, 10 mm Stud Length, Plastic Knob, Zinc-Plated Steel Stud
Manufacturer part number: KS25-M5:10-PF
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CRUSH BEARINGS & DRIVES - LEXINGTON
0 0 0
Loading...
$1.98

Product Details

Type

Star Knobs

Description

This Ruland star knob has a M5 threaded stud which replaces standard hardware in industrial applications where frequent adjustments of conveyor guide rails, screens, sensors, and other industrial components is required without tools. The knob is made from shock-resistant technopolymer plastic with a star-shaped ergonomic design for easy gripping by the operator. The stud is made from steel with a zinc plated finish for durability in a range of industrial environments. This knob is RoHS compliant.

Note

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Specifications

Conflict Minerals:Compliant
Country of Origin:DE
Hub Diameter (DH):12 mm
Hub Height (H2):8 mm
Insert and Screw Finish:Zinc Plated
Insert and Screw Material:Steel
ISO 9001:2015:ISO 9001:2015 Certified
Knob Diameter (D1):25 mm
Knob Finish:Matte
Knob Material:Plastic
Manufacturer:Otto Ganter
Overall Height (H1):16 mm
Prop 65:<img src=https://www.ruland.com/media/wysiwyg/prop-65.png><b>WARNING</b> This product can expose you to chemicals including Soots and Lead, known to the State of California to cause cancer, and Lead known to the State of California to cause birth defects or other reproductive harm. For more information go to <a href=https://www.p65warnings.ca.gov/>www.P65Warnings.ca.gov</a>.
REACH:Compliant
RoHS3:Compliant
Stud Length (LS):10 mm
Tariff Code:3926.30.1000
Thread (TH):M5 x 0.8
Unit of Measurement:Metric
