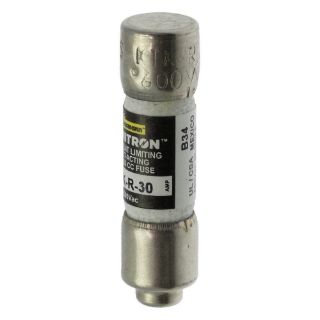

Actual Product May Vary From Image

KTK-R-30 BSF

Name: KTK-R-30 BSF
Brand: Bussmann
SKU: KTK-R-30 BSF
Price: 58.72 USD
Availability: InStock

Bussmann Limitron™ KTK-R-30 Current Limiting Fast Acting Fuse, 30 A, 600 V, 200 kAIC Interrupt, CC Class, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: KTK-R-30

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	20
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$58.72

Qty:

Product Details

Brand Name

Bussmann

Type

Current Limiting Fast Acting

Alternate Supplier #

Grainger - 4XC28

Description

Eaton Bussmann series Limitron™ fuses provide short circuit protection that is, on average, 10X faster than basic circuit breakers or fuses. These current-limiting UL and CSA Listed fuses are available in Class CC, J, R, and T - all with a 200 kA interrupting rating.

Bussmann Limitron™ Fuse, Current Limiting Fast Acting, Series: KTK-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 30 A, 600 V, 200 kAIC Interrupt, Class: CC, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Single Element, Melamine Tube, 13/32 in Dia x 1-1/2 in L Body Size

Application

Industrial Facilities and Factories, Safety and Security Systems, Branch Circuits, Specialized Circuits and Street Lighting Applications

Standards

Features

Current limitation at class CC levels provides maximum component short circuit current rating protection
200 kA interrupt rating provides high ratings for control circuit locations
Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
Nickel plated bronze end caps

Specifications

Amperage Rating:	30 A
Body Size:	13/32 in Dia x 1-1/2 in L
Body Type:	Cartridge
Class:	CC
Country of Origin:	MX
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kAIC
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Series:	KTK-R
Terminal Type:	Ferrule
Voltage Rating:	600 V
