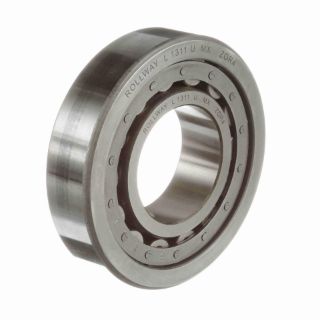

L-1328-U RLW

Name: L-1328-U RLW
Brand: Regal Rexnord
SKU: L-1328-U RLW
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

L1328U

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Rollway®

Type

Straight Bore Unmounted

Description

Cylindrical roller bearings are manufactured in a number of designs. The predominant type being the single row roller. The roller and cage assembly are guided axially by the integral flanges (ribs) on one of the bearing rings. This design facilitates ease of mounting and dismounting, particularly where both races are an interference fit on their seating. Roller bearings with flanges (ribs) on one race only do not provide any end location.

Rollway® Cylindrical Roller Bearing, Straight Bore Unmounted, Series: 1300, 140 mm Bore Dia, 300 mm Outside Dia, 1 Row, 62 mm W, Open Closure, 629.082 N Dynamic/769.485 N Static, Steel Bearing, Steel Cage, 3870 rpm Maximum, 250 deg F

Application

Aggregate, Cement, Coal Power Generation, Cranes, Hoists, Metals, Minerals, Mining, Oil, Gas, Pulp and Paper Industries

Features

High radial load capacity
Inner race separable one direction
Outer race with two flanges and non-separable
Segmented steel retainer

Specifications

Bearing Material:	Steel
Bore Diameter:	140 mm
Cage Material:	Steel
Closure Type:	Open
Load Capacity:	629.082 N Dynamic/769.485 N Static
Maximum Speed:	3870 rpm
Number of Rows:	1
Outside Diameter:	300 mm
Series:	1300
Temperature Rating:	250 deg F
Width:	62 mm
