L100 HUB 1/2 1/8X1/16 KW LOV

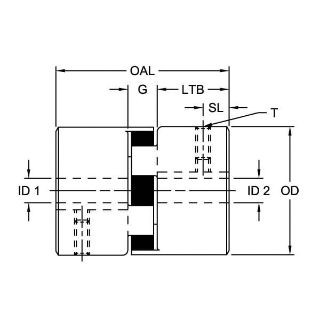

Lovejoy® 68514426089 Type L Style 1 Jaw Coupling Hub With Keyway and Setscrew, L100 Coupling, 1/2 in Dia Bore, 1.38 in L Through Bore, 2.54 in Dia Hub, Sintered Iron
Manufacturer: Lovejoy
Manufacturer part number: 68514426089
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$58.21

Product Details

Brand Name

Lovejoy®

Type

Type L Style 1

Description

Lovejoy® Jaw Coupling Hub, Type L Style 1, L100 Coupling, 1/2 in Bore, 2.54 in Diameter Hub, 2.09 in Hub Length, 1/8 in W x 1/16 in D Keyway, 7000 rpm Maximum, 1.38 in Length Through Bore, 5/16-18 Screw, Sintered Iron, Metallic

Standards

ECCN EAR99

Features

  • Fail safe - will still perform if elastomer fails
  • No metal to metal contact
  • Resistant to oil, dirt, sand, moisture and grease
  • More than 850000 combinations of bore sizes

Specifications

Bore Diameter:1/2 in
Country of Origin:US
Coupling Size:L100
Finish:Metallic
Hub Diameter:2.54 in
Hub Length:2.09 in
Keyway Size:1/8 in W x 1/16 in D
Length Through Bore:1.38 in
Material:Sintered Iron
Maximum Speed:7000 rpm
Screw Size:5/16-18
