L106Y BOS

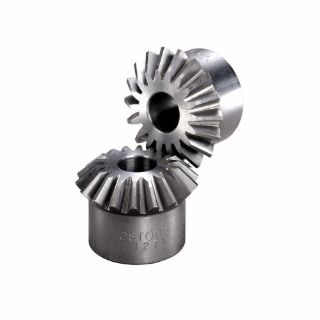

Picture of L106Y BOS
Actual Product May Vary From Image

Product Details

Manufacturer:
Boston Gear
Manufacturer part number:
L106Y
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$252.90 / EA

Description

Brand Name

Boston Gear®

Type

Unhardened Straight Tooth

Description

Boston miter gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Miter gears are similar to bevel gears except miter gears are used for 1:1 ratios. Straight tooth miter gears are cut with a generated "Coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth miter gears are better suited for higher speeds and high torque applications.
Boston Gear® Miter Gear Without Keyway or Setscrews, Unhardened Straight Tooth, Series: L Series, 1-1/4 in Bore Dia, 3.68 in Outside Dia, 1:1 Gear Ratio, 28 Teeth, 8 Diametral Pitch, 3-1/2 in, 0.77 in Face Width, Right Hand Direction of Rotation, 2-1/2 in Hub Dia, 1-1/4 in Hub Projection, 20 deg Pressure Angle, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications

Bore Diameter:1-1/4 in
Country of Origin:US
Diametral Pitch:8
Direction of Rotation:Right Hand
Face Width:0.77 in
Gear Ratio:1:1
Hub Diameter:2-1/2 in
Hub Projection:1-1/4 in
Material:Steel
Number of Teeth:28
Outside Diameter:3.68 in
Pitch Diameter:3-1/2 in
Pressure Angle:20 deg
Series:L Series
