Actual Product May Vary From Image

L110 7/8K AD

Name: L110 7/8K AD
Brand: IDC-USA
SKU: L110 7/8K AD
Price: 38.36 USD
Availability: OutOfStock

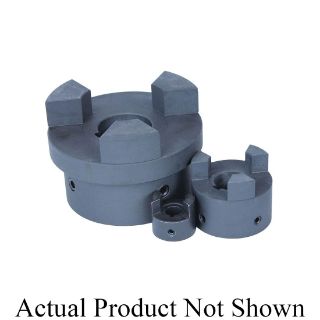

IDC Select® IDC L110-7/8K Finished Bore Type L Jaw Coupling With 3/16 in W x 3/32 in D Keyway and 3/8-16UNC Setscrew, 7/8 in Dia Bore, 3.323 in OD, 4.23 in OAL, 5000 rpm Max

Manufacturer: IDC-USA

Manufacturer part number: IDC L110-7/8K

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$38.36

Qty:

Product Details

Brand Name

IDC Select®

Type

Finished Bore Type L

Description

IDC Select® Jaw Coupling, Finished Bore Type L, 7/8 in Bore, 3.323 in OD, 4.23 in Overall Length, Type 1 Hub, 3.323 in Dia x 2.499 in L Hub, 1.69 in Length Through Bore, 5000 rpm Maximum

Features

Failsafe - works even if elastomer fails
3 jaws
L110 size coupling

Includes

(2) Cast Iron Hubs and (1) Insert

Specifications

Bore Diameter:	7/8 in
Hub Size:	3.323 in Dia x 2.499 in L
Hub Type:	Type 1
Length Through Bore:	1.69 in
Maximum Speed:	5000 rpm
Outside Diameter:	3.323 in
Overall Length:	4.23 in
