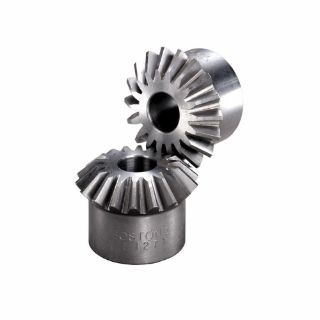

Actual Product May Vary From Image

L112Y BOS

Name: L112Y BOS
Brand: Boston Gear
SKU: L112Y BOS
Price: 40.48 USD
Availability: OutOfStock

Boston Gear® L112Y L Series Unhardened Straight Tooth Miter Gear Without Keyway or Setscrews, 16 Pitch, Right Hand Rotation, 20 deg Angle, 24 Teeth, 1-1/2 in Pitch, 0.32 in Face, 1/2 in Bore, Steel

Manufacturer: Boston Gear

Manufacturer part number: L112Y

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$40.48

Qty:

Product Details

Brand Name

Boston Gear®

Type

Unhardened Straight Tooth

Description

Boston miter gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Miter gears are similar to bevel gears except miter gears are used for 1:1 ratios. Straight tooth miter gears are cut with a generated "Coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth miter gears are better suited for higher speeds and high torque applications.

Boston Gear® Miter Gear Without Keyway or Setscrews, Unhardened Straight Tooth, Series: L Series, 1/2 in Bore Dia, 1.59 in Outside Dia, 1:1 Gear Ratio, 24 Teeth, 16 Diametral Pitch, 1-1/2 in, 0.32 in Face Width, Right Hand Direction of Rotation, 1 in Hub Dia, 1/2 in Hub Projection, 20 deg Pressure Angle, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications

Bore Diameter:	1/2 in
Country of Origin:	US
Diametral Pitch:	16
Direction of Rotation:	Right Hand
Face Width:	0.32 in
Gear Ratio:	1:1
Hub Diameter:	1 in
Hub Projection:	1/2 in
Material:	Steel
Number of Teeth:	24
Outside Diameter:	1.59 in
Pitch Diameter:	1-1/2 in
Pressure Angle:	20 deg
Series:	L Series
