L1430T BLD

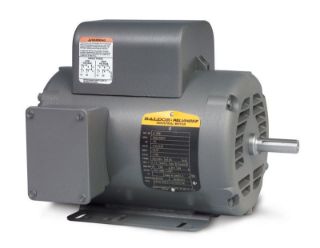

Picture of L1430T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
L1430T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 3 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,497.50 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 1 PH; Voltage Rating: 230 VAC; Horsepower: 5 HP; Speed Rating: 1725 RPM; Frequency Rating: 60 HZ; Full Load Current: 20.6 AMP; Torque Rating: 15 LB-FT Full Load, 40.5 LB-FT Break Down, 30.5 LB-FT Pull-Up, 36.5 LB-FT Locke

Application

General Purpose

Features

5HP,1725RPM,1PH,60HZ,184T,3634LC,ODTF,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:ODTF
Frame:184
Frequency Rating:60 Hz
Full Load Current:20.6 A
Horsepower:5.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:L
NEMA Nominal Efficincy:84.00%
Phase:Single Phase
Power Factor:94
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,725 rpm
Voltage Rating:230 V

Resources

Tech DrawingSpec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
ODTF
Frame
184T
Frequency Rating
60 Hz
Horsepower
5 HP
Speed Rating
1800 RPM
Type
Single Phase Motor
Voltage Rating
230
