L146YG BOS

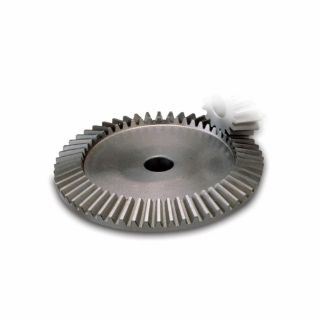

Picture of L146YG BOS
Actual Product May Vary From Image

Product Details

Manufacturer:
Boston Gear
Manufacturer part number:
L146Y-G
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$80.90 / EA

Description

Brand Name

Boston Gear®

Type

Unhardened Straight Tooth

Description

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.
Boston Gear® Bevel Gear, Unhardened Straight Tooth, Series: L Series, Bevel Gear, 1/2 in Bore, 1.55 in OD, 1.5:1 Gear Ratio, 24 Teeth, 16 Diametral Pitch, 1-1/2 in Pitch Diameter, 0.26 in Face Width, 1.12 in Diameter Hub, 0.56 in Hub Projection, 20 deg Pressure Angle, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

Without keyway or set screws

Specifications

Bore Diameter:1/2 in
Country of Origin:US
Diametral Pitch:16
Face Width:0.26 in
Gear Ratio:1.5:1
Gear Type:Bevel
Hub Diameter:1.12 in
Hub Projection:0.56 in
Material:Steel
Number of Teeth:24
Outside Diameter:1.55 in
Pitch Diameter:1-1/2 in
Pressure Angle:20 deg
Series:L Series
