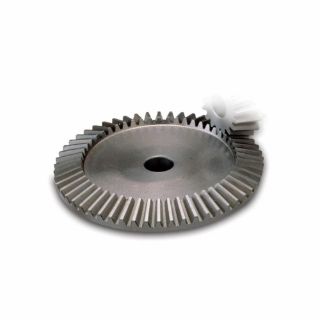

Picture of L150YG BOS
Actual Product May Vary From Image

L150YG BOS

Boston Gear® L150Y-G Unhardened Straight Tooth Bevel Gear, Bevel Gear, 14 Diametral Pitch, 20 deg Pressure Angle, 28 Teeth, 2 in Dia Pitch, 0.36 in W Face, 1/2 in Dia Bore, Steel
Manufacturer: Boston Gear
Manufacturer part number: L150Y-G
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$76.91

Product Details

Brand Name

Boston Gear®

Type

Unhardened Straight Tooth

Description

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.
Boston Gear® Bevel Gear, Unhardened Straight Tooth, Series: L Series, Bevel Gear, 1/2 in Bore, 2.04 in OD, 2:1 Gear Ratio, 28 Teeth, 14 Diametral Pitch, 2 in Pitch Diameter, 0.36 in Face Width, 1.62 in Diameter Hub, 0.66 in Hub Projection, 20 deg Pressure Angle, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

Without keyway or set screws

Specifications

Bore Diameter:1/2 in
Country of Origin:US
Diametral Pitch:14
Face Width:0.36 in
Gear Ratio:2:1
Gear Type:Bevel
Hub Diameter:1.62 in
Hub Projection:0.66 in
Material:Steel
Number of Teeth:28
Outside Diameter:2.04 in
Pitch Diameter:2 in
Pressure Angle:20 deg
Series:L Series
