L150YP BOS

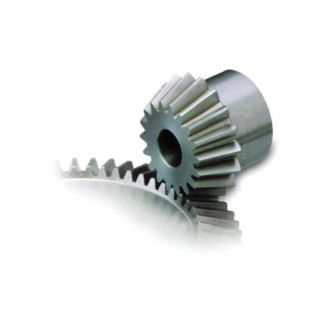

Picture of L150YP BOS
Actual Product May Vary From Image

Product Details

Manufacturer:
Boston Gear
Manufacturer part number:
L150Y-P
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$60.91 / EA

Description

Brand Name

Boston Gear®

Type

Unhardened Straight Tooth

Description

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.
Boston Gear® Bevel Gear, Unhardened Straight Tooth, Series: L Series, Bevel Pinion Gear, 1/2 in Bore, 1.17 in OD, 2:1 Gear Ratio, 14 Teeth, 14 Diametral Pitch, 1 in Pitch Diameter, 0.35 in Face Width, 0.81 in Diameter Hub, 0.56 in Hub Projection, 20 deg Pressure Angle, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

Without keyway or set screws

Specifications

Bore Diameter:1/2 in
Country of Origin:US
Diametral Pitch:14
Face Width:0.35 in
Gear Ratio:2:1
Gear Type:Bevel Pinion
Hub Diameter:0.81 in
Hub Projection:0.56 in
Material:Steel
Number of Teeth:14
Outside Diameter:1.17 in
Pitch Diameter:1 in
Pressure Angle:20 deg
Series:L Series
