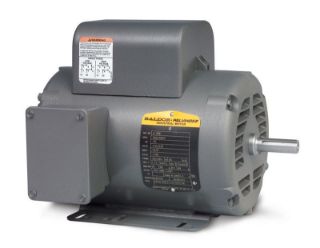

Picture of L1511T BLD
Actual Product May Vary From Image

L1511T BLD

10HP,3450RPM,1PH,60HZ,215T,3740L,OPEN,F1
Manufacturer: Baldor Reliance
Manufacturer part number: L1511T
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,762.27

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

10HP,3450RPM,1PH,60HZ,215T,3740L,OPEN,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:OPEN
Frame:215
Frequency Rating:60 Hz
Full Load Current:46.0 A
Horsepower:10.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:L
NEMA Nominal Efficincy:83.00%
Phase:Single Phase
Power Factor:86
Rotation:Reversible
Service Factor:1.15
Speed Rating:3,450 rpm
Voltage Rating:230 V

Resources

Spec SheetWarranty
