L153YP BOS

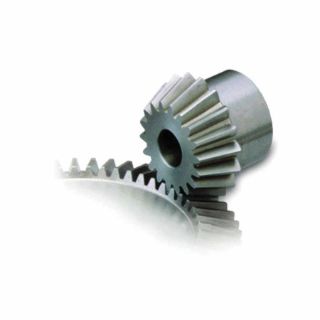

Picture of L153YP BOS
Actual Product May Vary From Image

Product Details

Manufacturer:
Boston Gear
Manufacturer part number:
L153Y-P
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 5 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$129.44 / EA

Description

Brand Name

Boston Gear®

Type

Unhardened Straight Tooth

Description

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.
Boston Gear® Bevel Gear, Unhardened Straight Tooth, Series: L Series, Bevel Pinion Gear, 3/4 in Bore, 2.21 in OD, 1.5:1 Gear Ratio, 20 Teeth, 10 Diametral Pitch, 2 in Pitch Diameter, 0.58 in Face Width, 1-3/4 in Diameter Hub, 0.91 in Hub Projection, 20 deg Pressure Angle, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

Without keyway or set screws

Specifications

Bore Diameter:3/4 in
Country of Origin:US
Diametral Pitch:10
Face Width:0.58 in
Gear Ratio:1.5:1
Gear Type:Bevel Pinion
Hub Diameter:1-3/4 in
Hub Projection:0.91 in
Material:Steel
Number of Teeth:20
Outside Diameter:2.21 in
Pitch Diameter:2 in
Pressure Angle:20 deg
Series:L Series
