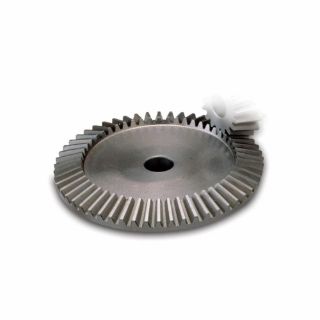

Picture of L156YG BOS
Actual Product May Vary From Image

L156YG BOS

Boston Gear® L156Y-G Unhardened Straight Tooth Bevel Gear, Bevel Gear, 8 Diametral Pitch, 20 deg Pressure Angle, 40 Teeth, 5 in Dia Pitch, 0.83 in W Face, 1 in Dia Bore, Steel
Manufacturer: Boston Gear
Manufacturer part number: L156Y-G
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$237.62

Product Details

Brand Name

Boston Gear®

Type

Unhardened Straight Tooth

Description

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.
Boston Gear® Bevel Gear, Unhardened Straight Tooth, Series: L Series, Bevel Gear, 1 in Bore, 5.07 in OD, 2:1 Gear Ratio, 40 Teeth, 8 Diametral Pitch, 5 in Pitch Diameter, 0.83 in Face Width, 3 in Diameter Hub, 1-1/4 in Hub Projection, 20 deg Pressure Angle, Steel

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

Without keyway or set screws

Specifications

Bore Diameter:1 in
Country of Origin:US
Diametral Pitch:8
Face Width:0.83 in
Gear Ratio:2:1
Gear Type:Bevel
Hub Diameter:3 in
Hub Projection:1-1/4 in
Material:Steel
Number of Teeth:40
Outside Diameter:5.07 in
Pitch Diameter:5 in
Pressure Angle:20 deg
Series:L Series
