Actual Product May Vary From Image

L190 HUB 24MM 8X3.3MM KW LOV

Name: L190 HUB 24MM 8X3.3MM KW LOV
Brand: Lovejoy
SKU: L190 HUB 24MM 8X3.3MM KW LOV
Price: 159.19 USD
Availability: OutOfStock

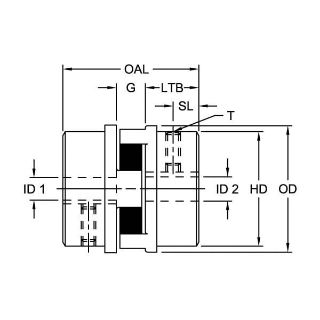

Lovejoy® 68514459109 Type L Style 2 Jaw Coupling Hub With Keyway, L190 Coupling, 24 mm Dia Bore, 49.28 mm L Through Bore, 114.3 mm Dia Hub, Sintered Iron

Manufacturer: Lovejoy

Manufacturer part number: 68514459109

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$159.19

Qty:

Product Details

Brand Name

Lovejoy®

Type

Type L Style 2

Description

Lovejoy® Jaw Coupling Hub, Type L Style 2, L190 Coupling, 24 mm Bore, 114.3 mm Diameter Hub, 74.68 mm Hub Length, 8 mm W x 3.3 mm D Keyway, 5000 rpm Maximum, 49.28 mm Length Through Bore, Sintered Iron, Metallic

Standards

ECCN EAR99

Features

Fail safe - will still perform if elastomer fails
No metal to metal contact
Resistant to oil, dirt, sand, moisture and grease
More than 850000 combinations of bore sizes

Specifications

Bore Diameter:	24 mm
Country of Origin:	US
Coupling Size:	L190
Finish:	Metallic
Hub Diameter:	114.3 mm
Hub Length:	74.68 mm
Keyway Size:	8 mm W x 3.3 mm D
Length Through Bore:	49.28 mm
Material:	Sintered Iron
Maximum Speed:	5000 rpm
