L3514TM BLD

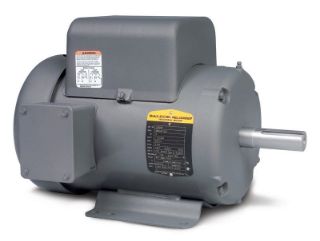

Picture of L3514TM BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
L3514TM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,105.40 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

1.5HP,1725RPM,1PH,60HZ,145T,3532LC,TEFC

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:145
Frequency Rating:60 Hz
Full Load Current:7.9 A; 16.0 A; 8.0 A
Horsepower:1.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:L
NEMA Nominal Efficincy:75.50%
Phase:Single Phase
Power Factor:8
Rotation:Reversible
Service Factor:1
Speed Rating:1,725 rpm
Voltage Rating:230 V; 208 V; 115 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
145T
Frequency Rating
60 Hz
Horsepower
1-1/2 HP
Speed Rating
1800 RPM
Type
Single Phase Motor
Voltage Rating
115/208-230
