L3516TM BLD

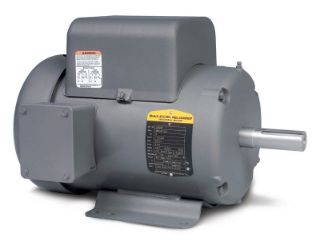

Picture of L3516TM BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
L3516TM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,573.80 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

2HP,1730RPM,1PH,60HZ,56HZ,3528LC,TEFC,F1

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:8.1 A; 8.8 A
Horsepower:2.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:L
NEMA Nominal Efficincy:82.50%
Phase:Single Phase
Power Factor:97
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,740 rpm
Voltage Rating:208 V; 230 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
56HZ
Frequency Rating
60 Hz
Horsepower
2 HP
Speed Rating
1800 RPM
Type
Definite Purpose Single Phase Motor
Voltage Rating
208-230
