L60030C-2PQDIN LIT

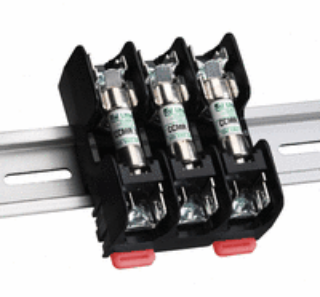

Picture of L60030C-2PQDIN LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
L60030C-2PQDIN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$40.74 / EA

Description

Brand Name

Littelfuse®

Type

Gangable

Description

Littelfuse® DIN series class CC, G and midget fuse blocks have integral DIN rail mounting capabilities that allow secure mounting to 35 mm inhat in type DIN rails. Electrical panel builders and machine builders no longer need to use mounting adapters, saving assembly time and related costs.
Littelfuse® POWR-GARD® Fuse Block, Gangable, Series: L600C, 600 VAC/VDC, 30 A, 2 Pole, Class: CC, Pressure Plate with Quick-Connect Terminal, 14 to 10 AWG Cu Wire, DIN Rail Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, 125 deg C, For Use With: CCMR, KLDR, KLKR Series Fuse, Thermoplastic, Black, 3 in H x 1.533 in W x 1.25 in D

Standards

UL Recognized | UL File No. E14721 | CSA File No.LR7316 | UL 94-V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Space saving design
  • Universal mounting holes for easy replacement
  • 1-hand release from DIN rail optional
  • Rejection feature that prevents the insertion of fuses with lower interrupting rating or voltage ratings
  • Clip design reduces resistance and heat
  • Integral DIN rail mounting reduces assembly time
  • Solid/stranded wire
  • Quick connect terminals accommodate side or top connection

Specifications

Amperage Rating:30 A
Class:CC
Color:Black
Connection Type:Pressure Plate with Quick-Connect Terminal
Country of Origin:CN
Dimensions:3 in H x 1.533 in W x 1.25 in D
Fuse Diameter:13/32 in
Fuse Length:1-1/2 in
Material:Thermoplastic
Mounting Type:DIN Rail
Number of Poles:2
Series:L600C
Suitable For Use With:CCMR, KLDR, KLKR Series Fuse
Temperature Rating:125 deg C
Voltage Rating:600 VAC/VDC
Wire Size:14 to 10 AWG Cu

Products Specifications

Brand Name
Littelfuse
Class
Class CC
Type
Fuse Block
