L60030M-1PQDIN LIT

Name: L60030M-1PQDIN LIT
Brand: Littelfuse
SKU: L60030M-1PQDIN LIT
Price: 20.76 USD
Availability: OutOfStock

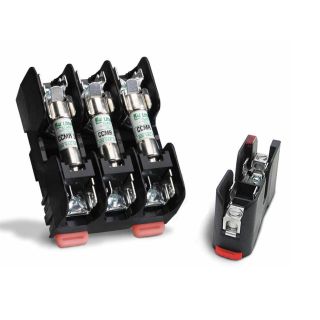

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

L60030M-1PQDIN

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$20.76 / EA

Description

Brand Name

Littelfuse®

Type

Non-Indicating

Description

The Littelfuse® Class CC, CD and midget blocks offer generous space savings and enhanced value. DIN rail mounting and universal mounting holes are available as well as an indication feature on all Class CD fuse blocks.

Littelfuse® Midget Fuse Block, Non-Indicating, Series: L600M, 600 VAC/VDC, 30 A, 1 Pole, Class: CC, Pressure Plate, 14 to 10 AWG Wire, DIN Rail Mount, 38 mm Fuse Length, 10 mm Fuse Dia, 125 deg C, For Use With: BLF/BLN/BLS/FLA/FLM/FLQ/FLU/KLK/KLKD/KLQ Series Fuse, Thermoplastic, Black, 3 in L x 0.75 in W x 1.4 in D

Standards

UL File No. E14721 | CSA File No. LR7316 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Bolt-in mounting method
Space saving design
Universal mounting holes for easy replacement
Indication offered on CD blocks
One hand release from DIN rail optional
Rejection feature that prevents the insertion of fuses with lower interrupting rating or voltage ratings
Clip design reduces resistance and heat
Covers available for all amperages to enhance safety
High strength materials - midget fuse blocks are molded of high strength, high temperature material to minimize block breakage during handling and installation, as well as damage due to heat
Reduced resistance, less heat - high conductivity, one-piece copper alloy fuse clips have lower resistance than traditional two-piece brass or phosphor bronze fuse clips minimizes heat rise and watts loss within the fuse block
Gangable - interlocking fuse blocks allow ganging to produce a fuse block with any number of poles
Cu solid/stranded wire
Zinc plated steel pressure plate
Pressure plate with quick-connect terminal

Specifications

Amperage Rating:	30 A
Class:	CC
Color:	Black
Connection Type:	Pressure Plate
Country of Origin:	CN
Dimensions:	3 in L x 0.75 in W x 1.4 in D
Fuse Diameter:	10 mm
Fuse Length:	38 mm
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	1
Series:	L600M
Suitable For Use With:	BLF/BLN/BLS/FLA/FLM/FLQ/FLU/KLK/KLKD/KLQ Series Fuse
Temperature Rating:	125 deg C
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 10 AWG
