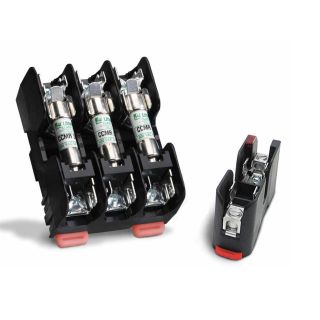

L60030M-2PQDIN LIT

Name: L60030M-2PQDIN LIT
Brand: Littelfuse
SKU: L60030M-2PQDIN LIT
Price: 35.78 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

L60030M-2PQDIN

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$35.78 / EA

Description

Brand Name

Littelfuse®

Description

Littelfuse® DIN series class CC, G and midget fuse blocks have integral DIN rail mounting capabilities that allow secure mounting to 35 mm inhat in type DIN rails. Electrical panel builders and machine builders no longer need to use mounting adapters, saving assembly time and related costs.

Littelfuse® POWR-GARD® Midget Fuse Block, Series: L600M, 600 VAC/VDC, 30 A, 2 Pole, Class: CC, Pressure Plate/QC Terminal, 14 to 10 AWG Wire, DIN Rail Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, 125 deg C, For Use With: BLF, BLN, BLS, FLA, FLM, FLQ, FLU, KLK, KLKD, KLQ Series Fuse, Thermoplastic, Black, 3.345 in H x 1.5 in W x 1.4 in D

Standards

UL File No. E14721 Recognized | UL Listed | CSA File No. LR7316 | UL 94-V-0 Flammability Rating | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Space saving design
Universal mounting holes for easy replacement
1-hand release from DIN rail optional
Rejection feature that prevents the insertion of fuses with lower interrupting rating or voltage ratings
Clip design reduces resistance and heat
14 to 10 AWG solid/stranded copper
Integral DIN rail mounting reduces assembly time
Quick connect terminals accommodate side or top connection

Specifications

Amperage Rating:	30 A
Class:	CC
Color:	Black
Connection Type:	Pressure Plate/QC Terminal
Country of Origin:	CN
Dimensions:	3.345 in H x 1.5 in W x 1.4 in D
Fuse Diameter:	13/32 in
Fuse Length:	1-1/2 in
Material:	Thermoplastic
Mounting Type:	DIN Rail
Number of Poles:	2
Series:	L600M
Suitable For Use With:	BLF, BLN, BLS, FLA, FLM, FLQ, FLU, KLK, KLKD, KLQ Series Fuse
Temperature Rating:	125 deg C
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 10 AWG
