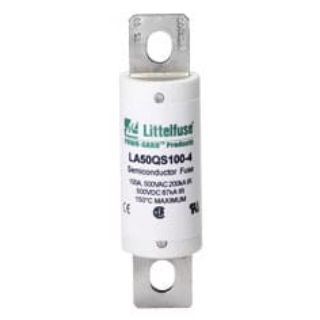

LA50QS70-4 LIT

Name: LA50QS70-4 LIT
Brand: Littelfuse
SKU: LA50QS70-4 LIT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LA50QS70-4

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Very Fast Acting High Speed

Description

In response to new equipment requirements, Littelfuse® LA50QS series fuses were developed to improve the overall performance of semiconductor fuses. The LA50QS provides the best protection features including lower I2t, longer life when subjected to cyclic loading and lower watts loss. LA50QS is today's choice for the protection of dynamic solid state equipment.

Littelfuse® POWR-GARD® Semiconductor Fuse, Very Fast Acting High Speed, Series: LA50QS, Non-Indicating, 70 A, 500 VAC/VDC, 200/100 kA Interrupt, Bolt-In/Blade Mounting, Round Body, 1 in Dia x 3.63 in L Body

Application

For protection of 500 V or less solid state equipment such as motor drives, UPS and inverters applications

Standards

UL Listed | CSA Certified

Features

Lowest I2T for greatest protection of semiconductor circuits
Low watts loss for cooler operation
Superior cycling ability gives an equipment design advantage
State of the art protection for 500 VAC equipment
Ultra compact sizes allow down sizing of existing equipment
200 kA at 500 VAC/100 kA at 500 VDC interrupt rating

Specifications

Amperage Rating:	70 A
Body Size:	1 in Dia x 3.63 in L
Body Type:	Round
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200/100 kA
Mounting Type:	Bolt-In/Blade
Series:	LA50QS
Voltage Rating:	500 VAC/VDC
