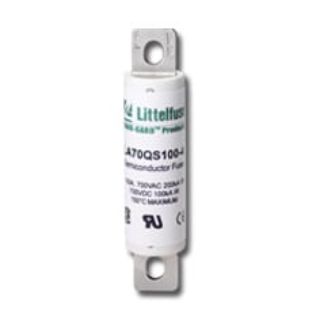

LA70QS125-4 LIT

Name: LA70QS125-4 LIT
Brand: Littelfuse
SKU: LA70QS125-4 LIT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LA70QS125-4

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

High Speed Very Fast Acting

Description

Littelfuse® LA70QS semiconductor fuses were developed to provide improved performance required by today's new equipment. The LA70QS features lower I2t, improved cycling and lower watts loss. It is the best choice for the protection of dynamic solid state equipment.

Littelfuse® POWR-GARD® Semiconductor Fuse, High Speed Very Fast Acting, Series: LA70QS, 125 A, 700 VAC/VDC, 100/200 kA Interrupt, Bolt-In/Blade Mounting, Cartridge/Cylindrical Body, 1.22 in Dia x 4.38 in L Body

Application

For protecting of semiconductors, 700 VAC or less solid state equipment such as motor drives, UPS, inverters, electrical and industrial applications

Standards

UL Recognized | CSA Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Very low I2T improved protection of equipment
Superior cycling ability for long, reliable life on high cycling loading
Lower watts loss for cooler operation
700 VAC/VDC rating provides greater design versatility
Compact sizes allow downsizing of equipment
200 kA AC, 100 kA DC interrupt rating

Specifications

Amperage Rating:	125 A
Body Size:	1.22 in Dia x 4.38 in L
Body Type:	Cartridge/Cylindrical
Country of Origin:	MX
Interrupt Rating:	100/200 kA
Mounting Type:	Bolt-In/Blade
Series:	LA70QS
Voltage Rating:	700 VAC/VDC
