LA70QS40-14FI LIT

Name: LA70QS40-14FI LIT
Brand: Littelfuse
SKU: LA70QS40-14FI LIT
Availability: OutOfStock

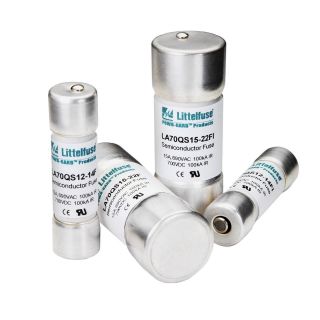

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LA70QS40-14FI

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

High Speed Very Fast Acting

Description

Littelfuse® LA70QS semiconductor fuses were developed to provide improved performance required by todays new equipment. The LA70QS features lower I2t, improved cycling and lower watts loss. It is the best choice for the protection of dynamic solid state equipment.

Littelfuse® POWR-GARD® Semiconductor Fuse, High Speed Very Fast Acting, Series: LA70QS, Indicating, 40 A, 700 VAC/VDC, 100/200 kA Interrupt, Blade Terminal, Bolt Mounting, Cartridge/French Cylindrical Body, 14 mm Dia x 51 mm L Body

Application

For protecting of semiconductors, electrical and industrial applications

Standards

UL Recognized | CSA Certified

Features

200 kA AC, 100 kA DC interrupt rating
Very low I2T improved protection of equipment
Superior cycling ability for long, reliable life on high cycling loading
Lower watts loss for cooler operation
700 VAC/VDC rating provides greater design versatility
Compact sizes allow downsizing of equipment

Specifications

Amperage Rating:	40 A
Body Size:	14 mm Dia x 51 mm L
Body Type:	Cartridge/French Cylindrical
Country of Origin:	TN
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	100/200 kA
Mounting Type:	Bolt
Series:	LA70QS
Terminal Type:	Blade
Voltage Rating:	700 VAC/VDC
