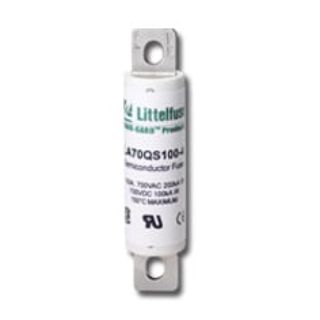

LA70QS400-4 LIT

Name: LA70QS400-4 LIT
Brand: Littelfuse
SKU: LA70QS400-4 LIT
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LA70QS400-4

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Very Fast Acting High Speed

Description

Littelfuse® LA70QS high speed fuses were developed to provide improved performance required by today's new equipment. The LA70QS features lower I2t, improved cycling and lower watts loss. It is the best choice for the protection of dynamic solid state equipment.

Littelfuse® POWR-GARD® Semiconductor Fuse, Very Fast Acting High Speed, Series: LA70QS, Non-Indicating, 400 A, 700 VAC/VDC, 200/100 kA Interrupt, Bolt-On/Blade Mount, Cartridge Body Type, 1.5 in Dia x 5.09 in L Body Size

Application

For protection of 700 V or less solid state equipment such as motor drives, UPS and inverters applications

Standards

UL Listed | CSA Certified

Features

Very I2T improved protection of equipment
Superior cycling ability for long, reliable life on high cycling loading
Lower watts loss for cooler operation
700 VAC/VDC rating provides greater design versatility
Compact sizes allow downsizing of equipment
200 kA at 700 VAC/100 kA at 700 VDC interrupt rating

Specifications

Amperage Rating:	400 A
Body Size:	1.5 in Dia x 5.09 in L
Body Type:	Cartridge
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200/100 kA
Mounting Type:	Bolt-On/Blade
Series:	LA70QS
Voltage Rating:	700 VAC/VDC
