LA70QS80-22F LIT

Name: LA70QS80-22F LIT
Brand: Littelfuse
SKU: LA70QS80-22F LIT
Availability: OutOfStock

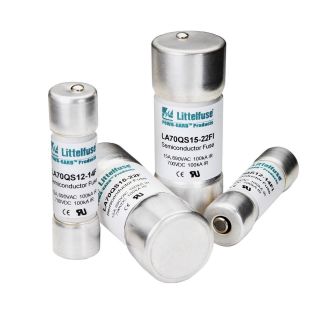

Actual Product May Vary From Image

Product Details

Manufacturer:

Littelfuse

Manufacturer part number:

LA70QS80-22F

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Littelfuse®

Type

Very Fast Acting High Speed

Description

Littelfuse® LA70QS semiconductor fuses were developed to provide improved performance required by todays new equipment. The LA70QS features lower I2t, improved cycling and lower watts loss. It is the best choice for the protection of dynamic solid state equipment.

Littelfuse® POWR-GARD® Semiconductor Fuse, Very Fast Acting High Speed, Series: LA70QS, Non-Indicating, 80 A, 690 VAC/700 VDC, 200/100 kA Interrupt, Bolted-Down Terminal, Stud Mounting, Cylindrical Body, 22 mm Dia x 58 mm L Body

Application

For protection of semiconductor devices, 700 V or less solid state equipment such as motor drives, UPS and inverters applications

Standards

UL Listed | CSA Certified

Features

Very low I2T improved protection of equipment
Superior cycling ability for long, reliable life on high cycling loading
Lower watts loss for cooler operation
700 VAC/VDC rating provides greater design versatility
Compact sizes allow downsizing of equipment

Specifications

Amperage Rating:	80 A
Body Size:	22 mm Dia x 58 mm L
Body Type:	Cylindrical
Country of Origin:	TN
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200/100 kA
Mounting Type:	Stud
Series:	LA70QS
Terminal Type:	Bolted-Down
Voltage Rating:	690 VAC/700 VDC
