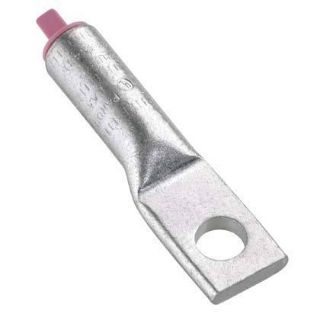

LAA300-38-2 PAN

Name: LAA300-38-2 PAN
Brand: Panduit
SKU: LAA300-38-2 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LAA300-38-2

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

1-Hole

Description

Panduit®, LAA300-38-2, Lug Compression Connector, 1-Hole Type LAA Dual Rated, Stranded Aluminum/Copper Conductor, 300 kcmil Conductor, Die Code: P76, 35 kV, 3/8 in Stud, Straight Tongue, 1.312 in L x 1.375 in W x 0.343 in THK Tongue, 4.05 in Overall Length, Standard Barrel, 0.65 in ID x 1.01 in OD x 2.25 in L Barrel, Specifications: 2-5/16 in L Wire Strip, 90 deg C, Blue

Standards

Features

Manufactured from high conductivity thick wall wrought aluminum
Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin plated to inhibit corrosion
UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies

Specifications

Barrel Size:	0.65 in ID x 1.01 in OD x 2.25 in L
Barrel Type:	Long/Standard
Color:	Blue
Conductor Size:	300 kcmil
Conductor Type:	Aluminum/Copper
Die Code:	P76
Material:	Aluminum
Mounting Hole Size:	2.31 in
Overall Length:	4 in
Series:	LLA
Specifications:	2-5/16 in L Wire Strip
Stud Size:	3/8 in
Temperature Rating:	90 deg C
Tongue Size:	1.31 in L x 1.38 in W x 0.34 in THK
Tongue Type:	Straight
Voltage Rating:	35 kV
