LAB500-12-2R PAN

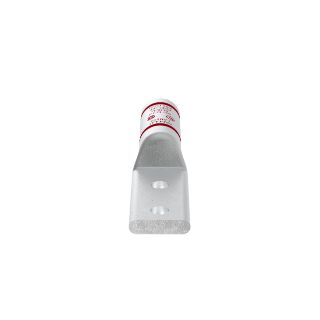

Picture of LAB500-12-2R PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LAB500-12-2R
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$51.88 / EA

Description

Brand Name

Panduit®

Type

2-Hole

Description

Panduit®, LAB500-12-2R, Compression Connector Lug, 2-Hole Dual Rated Round, Series: LAB, Stranded Aluminum/Copper Conductor, 500 kcmil Conductor, Die Code: P99, 35 kV, 1/2 in Stud, Straight Tongue, 3.56 in L x 1.74 in W x 0.45 in THK Tongue, 7.31 in Overall Length, Standard Barrel, 0.84 in ID x 1.32 in OD x 3 in L Barrel, Specifications: 1-3/4 in Hole Spacing, 3-1/16 in L Wire Strip, Tin Plated Finish, 90 deg C, 77.7 mm Mounting Hole, Pink

Standards

ARRA Compliant | ASTM B545-97 Class C | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL 486A | UL 486B | UL Listed File No. E52164

Features

  • Manufactured from high conductivity thick wall wrought aluminum
  • Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
  • Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection
  • Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
  • Tin-plated to inhibit corrosion
  • UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit® and specified competitor crimping tools and dies
  • Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Specifications

Barrel Size:0.84 in ID x 1.32 in OD x 3 in L
Barrel Type:Long/Standard
Color:Pink
Conductor Size:500 kcmil
Conductor Type:Aluminum/Copper
Country of Origin:IN
Die Code:P99
Material:Aluminum
Mounting Hole Size:3-1/16 in
Overall Length:7.31 in
Series:LAB
Specifications:1-3/4 in Hole Spacing, 3-1/16 in L Wire Strip, Tin Plated Finish
Stud Size:1/2 in
Temperature Rating:90 deg C
Tongue Size:3.56 in L x 1.72 in W x 0.44 in THK
Tongue Type:Straight
Voltage Rating:35 kV
