LAM3B1/0-38-6Y PAN

Name: LAM3B1/0-38-6Y PAN
Brand: Panduit
SKU: LAM3B1/0-38-6Y PAN
Price: 35.56 USD
Availability: OutOfStock

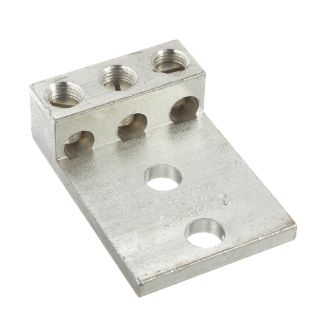

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LAM3B1/0-38-6Y

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$35.56 / EA

Description

Brand Name

Panduit®

Type

3-Barrel

Description

Panduit®, LAM3B1/0-38-6Y, Mechanical Lug Connector, Type LAM3B, Stranded Copper/Aluminum Conductor, 12 to 1/0 AWG Conductor, 3/8 in Stud, 2 Bolt Holes, 2.16 in L x 2 in W x 0.25 in THK Tongue, 600 VAC, Specifications: 3-Barrel, 194 deg F, Aluminum, TiN Coated, 2.91 in L x 0.88 in H Dimensions

Application

For stranded aluminum or copper code conductors

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65-13 | RoHS Compliant | UL 486A/486B File No. E52164

Features

Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
Wide wire range taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
Dual barrel provides termination of two conductors

Specifications

Conductor Size:	12 to 1/0 AWG
Conductor Type:	Aluminum/Copper/Stranded
Country of Origin:	US
Dimensions:	2.91 in L x 0.88 in H
Finish:	TiN Coated
Material:	Aluminum
Number of Bolt Holes:	2
Series:	LAM3B
Specifications:	3-Barrel
Stud Size:	3/8 in
Temperature Rating:	194 deg F
Tongue Size:	2.16 in L x 2 in W x 0.25 in THK
Tongue Type:	Straight
Voltage Rating:	600 VAC
