LAM3B250-12-1Y PAN

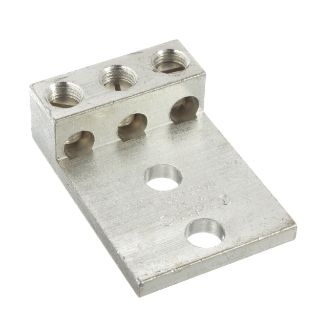

Picture of LAM3B250-12-1Y PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
LAM3B250-12-1Y
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$68.45 / EA

Description

Brand Name

Panduit®

Type

3-Barrel

Description

Panduit®, LAM3B250-12-1Y, Mechanical Lug Connector, Type LAM3LB Triple Barrel, Stranded Aluminum/Copper Conductor, 6 AWG to 250 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 3 in L x 2.82 in W x 0.31 in THK Tongue, 600 VAC, Specifications: 1-3/4 in Stud Hole Spacing, 194 deg F, TiN Coated, 4 in L x 1.19 in H Dimensions

Application

For stranded aluminum or copper code conductors

Standards

ARRA Compliant | ASTM B545-97 | Buy American Act Compliant | CSA C22.2 File No. 65-13 | RoHS Compliant | UL 486A/486B File No. E52164 Class C

Features

  • Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
  • Wide wire range-taking capability minimizes inventory requirements
  • Inspection window to visually assure full conductor insertion
  • Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
  • Dual barrel provides termination of two conductors

Specifications

Conductor Size:6 AWG to 250 kcmil
Conductor Type:Aluminum/Copper/Stranded
Country of Origin:US
Dimensions:4 in L x 1.19 in H
Finish:TiN Coated
Material:Aluminum
Number of Bolt Holes:2
Series:LAM3B
Specifications:1-3/4 in Stud Hole Spacing
Stud Size:1/2 in
Temperature Rating:194 deg F
Tongue Size:3 in L x 2.82 in W x 0.31 in THK
Tongue Type:Straight
Voltage Rating:600 VAC
