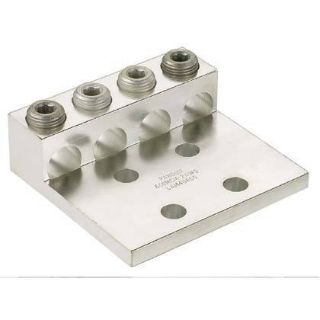

LAM4D350-12-1Y PAN

Name: LAM4D350-12-1Y PAN
Brand: Panduit
SKU: LAM4D350-12-1Y PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

LAM4D350-12-1Y

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

4-Barrel

Description

Panduit®, LAM4D350-12-1Y, Mechanical Lug Connector, Type LAM4D, Stranded Aluminum/Copper Conductor, 6 AWG to 350 kcmil Conductor, 1/2 in Stud, 4 Bolt Holes, 3.25 in L x 4.72 in W x 0.31 in THK Tongue, 600 VAC, Specifications: 1-3/4 in Stud Hole Spacing, 1-1/4 in L Wire Strip, 194 deg F, TiN Coated, 4.5 in L x 1.37 in H Dimensions

Application

For stranded aluminum or copper code conductors

Standards

ARRA Compliant | Buy American Act Compliant | CSA Certified | RoHS Compliant | UL Listed

Features

Four barrels provide termination of four conductors
Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance
Tin plated to inhibit corrosion
Wide wire range taking capability minimizes inventory requirements
Inspection window to visually assure full conductor insertion
Plated steel or aluminum set screw provides high strength, durable electrical contact between conductor and connector
LAM4LD connector is provided with dual set screws to allow premium clamping of conductor to connector for heavy duty applications

Specifications

Conductor Size:	6 AWG to 350 kcmil
Conductor Type:	Aluminum/Copper/Stranded
Country of Origin:	US
Dimensions:	4.5 in L x 1.37 in H
Finish:	TiN Coated
Material:	Aluminum
Number of Bolt Holes:	4
Series:	LAM4D
Specifications:	1-3/4 in Stud Hole Spacing, 1-1/4 in L Wire Strip
Stud Size:	1/2 in
Temperature Rating:	194 deg F
Tongue Size:	3.25 in L x 4.72 in W x 0.31 in THK
Tongue Type:	Straight
Voltage Rating:	600 VAC
